Instrumentation cables

Modern industrial plants set high demands on their main components. Instrumentation, and consequently the cables for measurement and control technology, play a vital role. To designate the product group instrumentation cables, we choose the abbreviation “MSR” which stands for “Measuring-Steering-Regulating”. Read more

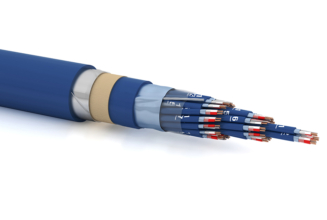

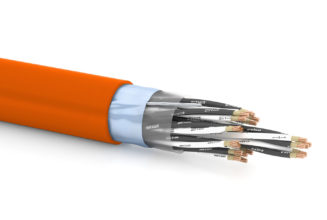

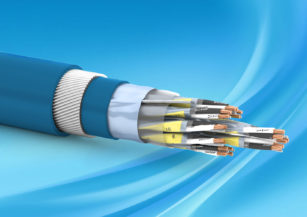

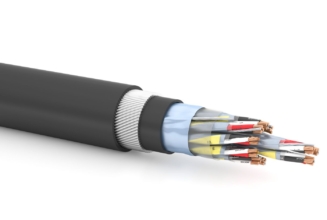

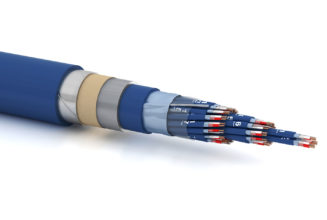

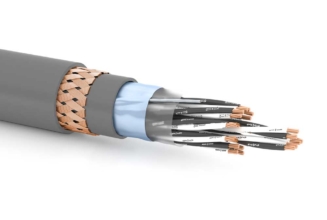

We are offering a broad range of instrumentation cables according to various standards  such as EN 50288-7, VDE 0815 and NF M 87-202 or following customer specifications. Eupen Cable is also able to customize the cable design. We can offer instrumentation cables in the following designs:



  • Conductors: solid (class 1) or stranded (class 2) copper conductors or flexible (class 5) copper conductors, bare or tinned.
  • Insulation: Polyethylene (PE) or cross-linked Polyethylene (XLPE) or Polyvinylchloride (PVC). If circuit integrity is required, we can offer a ceramic-forming insulation compound or a combination of Mica tape and XLPE.
  • Stranding of the insulated cores: in pairs, triples or quads.
  • Screen: with individual or overall screen (aluminum laminated foil, copper braid or tape).
  • Armour: with steel tape, steel wire or steel wire braid.
  • As special construction with a lead sheath as protection against contaminated soil or against aggressive chemicals such as acids, bases, aliphatic or aromatic hydrocarbons.
  • Outer sheath: Polyvinylchloride (PVC) or halogen-free compound for special requirements in case of fire.

Our “Construction guideline” can be a useful help to specify the required product and thus simplify the coordination between the customer and Eupen Cable. Close


Instrumentation cables - All datasheets
